Waterproof Design Tips For Outdoor EV Charger Cabinets
Why Waterproof Design Matters For Outdoor EV Charger Cabinets
Outdoor EV charger cabinets are exposed to rain, dew, humid air and harsh outdoor climate all year round. Poor structural waterproof design will cause internal circuit short circuit, metal rust and equipment shutdown. Reasonable enclosure waterproof structure is the core premise to extend service life of outdoor charging equipment.
All waterproof structure design follows unified ISO industrial enclosure design standards, which unifies sealing structure and waterproof testing rules for new energy outdoor electrical cabinets.
Core Waterproof Structure Design Of EV Charger Enclosures
Excellent outdoor charger cabinet waterproof design depends on four core sheet metal structural optimizations, not only relying on surface coating treatment. The key structural details include folded waterproof eaves, embedded rubber sealing gaskets, seamless welding cabinet corners and isolated bottom wiring holes.
These structural optimizations directly help finished cabinets pass professional industry detection and reach qualified industrial protection grades. To learn classification and industry standard of dust-proof and water-proof level, check our full guide on IP Rating Standards for Outdoor EV Charger Enclosures.
Common Waterproof Defects Of Low-Quality Charger Metal Cabinets
- Single-layer cabinet door without waterproof groove design
- Ordinary foamed rubber strip, aging quickly under ultraviolet ray
- Split welding gaps without glue filling treatment
- Unprotected bottom cable inlet, rainwater backflow easily
Most low-cost sheet metal cabinets ignore groove stamping technology, resulting in IP rating attenuation after 1-2 years outdoor use. Matching qualified custom sheet metal components can solve structural waterproof defects fundamentally.
Matching Material & Auxiliary Accessories For Waterproof Cabinets
Except mechanical structure, cabinet plate material and waterproof rubber accessories decide long-term waterproof performance. Aluminum alloy and galvanized steel with anti-corrosion coating are preferred base materials, meanwhile EPDM waterproof strips replace ordinary rubber parts for outdoor long-term use.
Reasonable cabinet material selection and surface anti-rust treatment coordinate with waterproof structure. You can refer to our article about Material & Surface Treatment for Power Supply Metal Case for material matching suggestions.
How To Match Waterproof Design With Actual IP Level Demand
Different installation scenarios need targeted waterproof structure upgrade. Semi-outdoor parking canopy chargers adopt standard IP54 waterproof structure; open outdoor charging stations need enhanced IP65 waterproof design, while coastal rainy areas need IP67 fully waterproof enclosure solution.
Balancing structural cost and IP protection demand is the key for industrial charger cabinet customization. We provide one-stop EV charger enclosure custom service, you can contact our team for tailored cabinet waterproof solution.

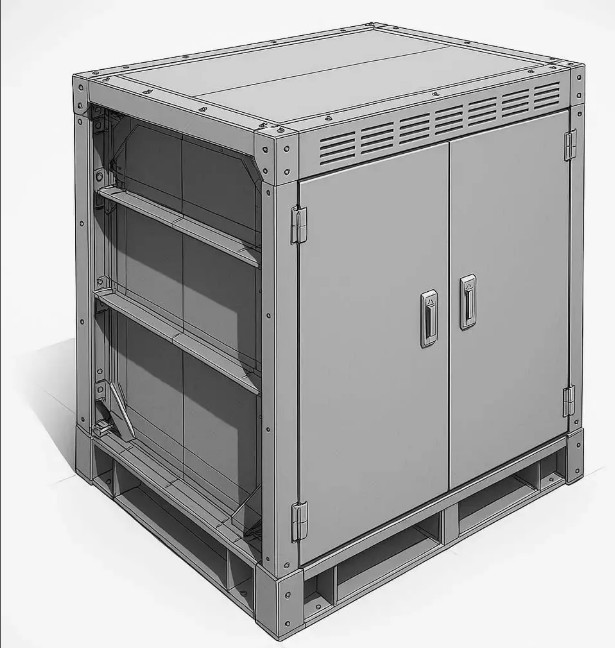

Advantages Of Reinforced Waterproof Custom Cabinet Frame
Integral welded cabinet frame improves overall structural tightness, reducing water penetration from splicing gaps. Reinforced frame waterproof design is widely used in new energy charging and energy storage equipment, cooperating with high-performance custom metal panel & frame for industrial equipment.
