Official IEC 60529 Definition of IP65 Protection Grade

The two-digit IP ingress protection code has clear and quantifiable testing criteria formulated by the International Electrotechnical Commission:

• First digit 6: Dust-tight enclosure. No fine dust particles can penetrate into the cabinet cavity under standard vacuum dust testing, completely isolating abrasive mineral dust, construction sand and roadside suspended particles.
• Second digit 5: Protected against low-pressure water jets sprayed from any angle. The housing can resist heavy rain flushing, roadside splashing water during vehicle passing and routine surface high-pressure cleaning without water seepage inside.

It is critical to clarify that IP65 does not support long-term full immersion or powerful high-pressure water cannon washing. For waterlogged road sections, tunnel entrances and dock charging terminals, IP66 or IP67 upgraded specifications are recommended as an advanced alternative. This guide concentrates on the mainstream IP65 design standard for most commercial outdoor DC charging piles.

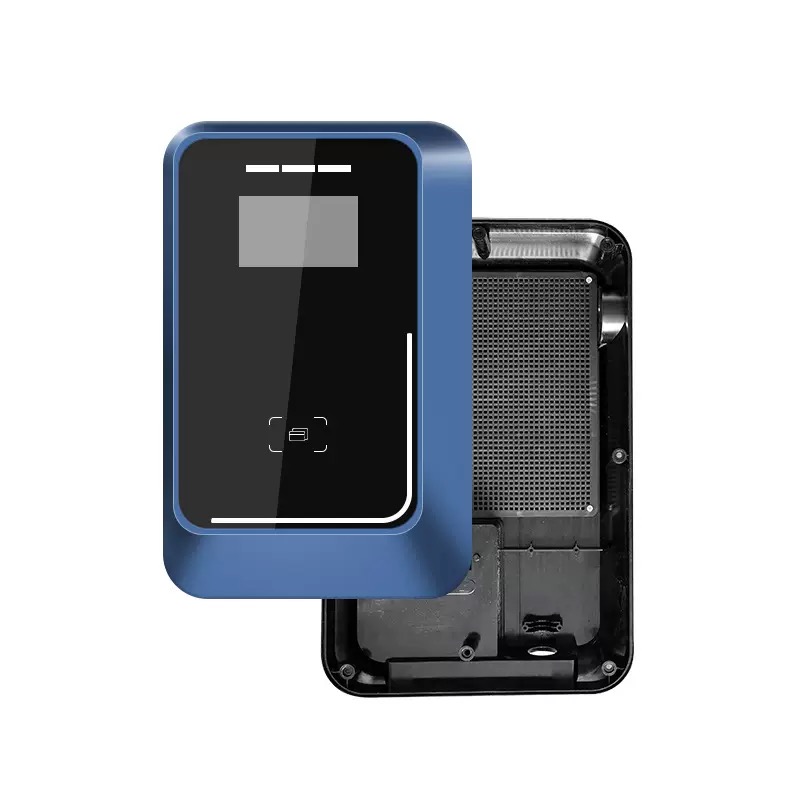

Core Structural Design Standards to Achieve Genuine IP65 Rating

Many low-cost charging pile shells only paste IP65 logos on the surface with ordinary spot welding and segmented rubber strips, which lose sealing capacity within 6–12 months in harsh outdoor climates. The following eight structural details define qualified IP65 sheet metal housings:

Cabinet Welding Technology

Adopt full laser seamless welding for all frame joints, followed by grinding and polishing to eliminate tiny gaps. Conventional spot welding leaves micro-cracks that allow dust and humid air to invade, failing long-term dust-tight requirements especially in African sandstorm and coastal salt fog environments.

Continuous Full-Circumference EPDM Sealing System

Install one-piece closed-loop EPDM foam gaskets on the door flange instead of spliced short rubber sections. EPDM material features ozone resistance, anti-aging and high and low temperature tolerance, maintaining stable compression sealing for over 10 years outdoors. Equip four-point synchronous compression door locks to evenly squeeze the gasket and prevent local gaps caused by uneven stress.

Top Sloped Rainwater Divergence Design

Design the top cover with a minimum 5° outward inclined slope to let rainwater flow down naturally without standing on the cabinet surface. Add hidden water blocking edges around the top perimeter to stop wind-driven rain from seeping through the door upper gap.

Integrated Bottom Drainage & Cable Sealing Structure

CNC machine closed drainage troughs at the bottom inner frame to collect condensed water or accidental seepage and drain it outside the housing. All wiring holes must be fitted with certified nylon or stainless steel waterproof cable glands with locking nuts and rubber sealing rings; random drilled unprotected holes will directly invalidate IP65 performance.

Charging Gun Socket Waterproof Reinforcement

The DC charging port is the most vulnerable penetration point. The socket base shall be embedded with a secondary waterproof apron, and the dust cover must have an internal sealing ring. When the gun is plugged in, the coupling structure forms a secondary enclosed cavity to block rainwater splashing upward from the ground.

Display Window & Lock Hole Auxiliary Sealing

Tempered glass viewing windows for the operation screen use polyurethane fully glued sealing around the border. Cylinder lock mounting holes add rubber buffer sleeves to avoid water creeping in through small assembly clearances.

Pressure Balance Breathing Valves

Mount IP65 rated pressure balance valves on the upper side wall of the sealed cabinet. They automatically exchange hot and humid internal air with external atmosphere while keeping dust and liquid out, balancing air pressure from temperature expansion and contraction and greatly reducing condensation probability.

IK Mechanical Impact Reinforcement

Outdoor roadside charging piles need IK10 anti-collision reinforcement for corner edges and the bottom base, preventing deformation and seal damage from vehicle bumps or man-made impact.

Core Technical Difficulty: IP65 Full Sealing vs High-Power DC Module Heat Dissipation

This is the biggest pain point for IP65 DC charging pile engineering design, also the core differentiated advantage of our manufacturing solution:
60kW, 120kW, 180kW and above high-power rectifier modules produce massive continuous heat during fast charging. The completely closed IP65 cavity blocks natural air convection, leading to internal temperature easily exceeding 70°C under direct sunlight in tropical and desert regions, triggering power reduction protection, automatic shutdown and accelerated aging of electrolytic capacitors.

We provide three tiered sealed heat dissipation schemes that do not break IP65 integrity:

Level 1: Small Power DC Chargers (≤60kW)

Built-in PWM variable speed exhaust fan matched with top-mounted pressure balance valve. The fan draws out hot internal air, and the balance valve supplements filtered outside air, forming a closed micro-circulation without open large vents. Ideal for residential compound and small commercial charging points in Vietnam, Thailand, Malaysia and Indonesia.

Level 2: Medium Power Dual-Gun DC Piles (60kW – 120kW)

External wall-mounted isolated heat exchanger. The heat exchange core transfers internal heat to the external airflow through a sealed partition, 100% preserving the IP65 dustproof and waterproof standard. Widely deployed for urban public charging networks in Brazil, Colombia and other Latin American countries.

Level 3: High-Power Central Fast Charging Stations (≥120kW)

Integrated cabinet constant temperature air conditioner + independent dual-chamber structure. The power module is placed in a dedicated cooling air duct isolated from the control circuit compartment, equipped with intelligent temperature sensors to start refrigeration automatically. Mandatory configuration for desert highway charging hubs in the Middle East, North Africa and Central Asian arid areas to withstand extreme ambient temperature above 55°C.

Anti-Condensation System Design for Tropical & Extreme Temperature Difference Regions

Regions near the equator in Southeast Asia, equatorial Africa and the Amazon Basin of South America face huge day-night temperature swings and annual relative humidity over 85%. Temperature drop inside sealed IP65 cabinets will generate dew droplets that drip onto PCB boards, causing short circuits and corrosion. Four combined configurations solve the condensation issue fundamentally:

1. Install multiple IP65 pressure balance breathing valves to discharge damp hot air in real time and equalize internal and external pressure.
2. Embed adjustable PTC constant temperature heating dehumidifiers, keeping the internal cavity temperature 3–5°C higher than the dew point all year round.
3. Paste flame-retardant thermal insulation foam lining on the inner wall of the cabinet shell to reduce the temperature difference between the outer surface and inner space.
4.Standardize downward angled cable gland installation to prevent humid air from climbing upward along wiring harnesses into the enclosure.

Targeted IP65 Customized Design Rules for Core Global Target Markets

Southeast Asia (Vietnam, Indonesia, Philippines, Thailand, Malaysia)

Climate features: Year-round high temperature, heavy monsoon rainfall, high air humidity, strong coastal salt fog on archipelagos
Customized plan: Standard IP65 laser welded sealed housing + built-in PTC dehumidifier + fan auxiliary cooling system; island coastal projects upgrade to 304 stainless steel material for salt spray resistance.

Latin America & Caribbean Nations (Brazil, Chile, Peru, Ecuador, all Caribbean islands)

Climate features: Mild inland climate, long coastline suffering severe marine salt aerosol corrosion, tropical rainforest high humidity zones
Customized plan: Inland city charging stations adopt powder-coated carbon steel IP65 housings for cost control; coastal port and seaside tourism projects specify full 316 stainless steel IP65 enclosures with passivation treatment.

African Markets (Nigeria, Kenya, South Africa, North African Desert Belt)

Climate features: Savannah high temperature, frequent desert sandstorms, open-air roadside charging exposed to massive dust and torrential rain
Customized plan: All ground-mounted DC charging piles require fully dust-tight laser seamless welded IP65 structure with reinforced bottom drainage; coastal African port charging facilities add stainless steel anti-corrosion upgrade.

Middle East & Central Asia (UAE, Saudi Arabia, Kazakhstan, Uzbekistan)

Climate features: Scorching summer heat, intense ultraviolet radiation, dry dusty desert environment, large diurnal temperature gaps
Customized plan: IP65 sealed cabinet equipped with industrial cabinet air conditioner forced cooling system + intelligent anti-condensation heater to counter extreme high temperature and sandstorm intrusion.

Europe & Inland Australia

Climate features: Temperate climate, clean atmospheric environment, low dust and moderate rainfall
Customized plan: Standard powder-coated carbon steel IP65 housing with basic pressure balance valve configuration fully meets application requirements, optimizing overall project procurement cost.

Common Manufacturing & Procurement Mistakes That Ruin IP65 Performance

Based on mass customization experience of EV charging pile enclosures for global new energy EPC contractors, these specification oversights frequently result in post-installation equipment failures:

1. Specifying fully sealed IP65 housings without matched active cooling systems for tropical Southeast Asian and Middle Eastern high-power DC chargers, leading to continuous thermal derating and frequent downtime.
2. Accepting low-cost spot-welded cabinets instead of laser seamless welded structures for African sandstorm projects, causing fine dust infiltration and module short circuits within one year.
3. Selecting ordinary painted carbon steel shells for Latin American and Southeast Asian coastal charging stations, resulting in cabinet rust perforation under long-term salt fog erosion.
4. Drilling arbitrary holes on the side panels or door plates for wiring without installing matching waterproof cable glands, completely destroying the original IP65 sealing integrity.
5. Omitting pressure balance valves and dehumidification heating modules for sealed IP65 cabinets, leading to persistent internal condensation and irreversible circuit board corrosion.
6. Using spliced short EPDM gaskets instead of one-piece continuous loops, forming gaps after thermal expansion and contraction under outdoor temperature cycles.
